Roof trusses at bedroom (south) walls are raised heel trusses to allow for 18 inches of glass fiber batt or blown insulation (R60). The roof trusses are installed at 16 inches on center in line with wall studs below. 6-mil vapor barrier is attached to the bottom chord of the truss. Gypsum wallboard or other desired finish is attached to the truss chords on 1x4 furring strips at 16 inch on center perpendicular to the trusses.
The benefits of installing radiant barriers are still in question. If used, I would recommend attaching the radiant barrier taping all joints to the bottom chord of the trusses after installing the vapor barrier, but prior to installation of the furring strips.
Roofing material is TRACC Moderne Slate roof shingles over ice shield underlayment. This is a 50-year roofing material made locally from recycled materials capable of withstanding a 175 mph wind driven rain. This is a very important feature on the Northumberland Strait where northeasters are not uncommon. The roofing sheds snow easily so consideration must be given to sliding snow in our climate. The roofing also works well for a rainwater collection system (guttering not shown).

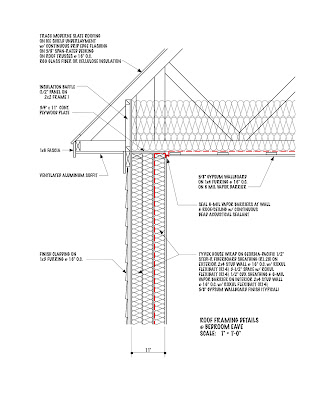

Maison Cocagne House is designed with double 2x4 insulated, exterior stud walls separated by a 3-1/2 inch fully insulated space to isolate the exterior walls from thermal bridging. The outside double stud walls would be erected prior to construction and erection of the interior stud walls. The inside stud walls are designed to be load bearing while the outside stud walls are designed to carry the exterior finish. The cold side of the inside stud wall is completely covered in a 6 mil vapor barrier then sheathed with 1/2 inch CDX plywood sheathing to provide lateral bracing as well as protect the vapor barrier. Red dashed line shows location of the 6-mil vapor barrier in the wall system. Red dots show locations where barrier is sealed with acoustical caulking. Experience has shown that the vapor barrier can be safely installed inside the wall as long as 2/3 of the insulation is on the cold side of the barrier. Locating the vapor barrier at the cold side of the inside stud wall allows for installation of electric without penetrating the vapor barrier. The cold side of the outside stud wall is sheathed with 1/2 inch fiberboard sheathing, then covered with house wrap. The design allows for the walls to be framed and insulated on the floors and lifted in place using wall jacks. Details for optional balloon framing and openings are provided in the links and will be discussed later.
